EVO 1700 UT - Undermount - Out-front Bar Mount - IPX6 USB-C

EVO 1700 UT SMART INTEGRATED BIKE LIGHT

EVO 1700 UT is a fully integrated, high-performance bike light system engineered for advanced road cyclists who demand precision, connectivity, and system-level control. Built as a flagship platform, it represents a new level of integration between lighting, drivetrain, and cycling electronics.

ANT+ CONNECTIVITY Seamlessly connects with compatible bike computers for integrated lighting control and status monitoring.	FTR LIGHTSYNC CONTROL Synchronizes compatible front and rear lights for a smarter, more connected lighting system.	SHIMANO DI2 CONTROL Operate the light directly from Shimano Di2 shift levers for effortless hands-on-bar control.

MAGICLOCK™ MOUNTING Exclusive MagicLock™ system enables instant installation with secure, rock-solid retention on any ride.	1700LM DUAL-BEAM OUTPUT 1700 lm high beam reaches up to 206 m, while the cut-off beam delivers wide, glare-free road illumination.	ADVANCED OPTICAL DESIGN Large optical module with a blue-coated lens maximizes light transmission while enhancing visual performance.

LONG RUNTIME & FAST CHARGING Dual 18500 batteries (5200 mAh) provide up to 17 hours of runtime and recharge in just 3 hours via USB-C.	IPX6 WEATHER PROTECTION IPX6-rated waterproof construction ensures reliable performance in rain and demanding riding conditions.	Enhanced Side Visibility Enhanced side visibility improves safety in multi-angle traffic.

SPECIFICATIONS

Design Philosophy

• The EVO 1700 UT adopts a more aggressive, mechanically driven design language.
• The compact yet dense structure reflects its internal power and integration capability.
• Every edge and surface is engineered to express precision, strength, and performance intent.

Optics & Performance

• The dual-beam system delivers a refined balance between high beam reach and low beam control.

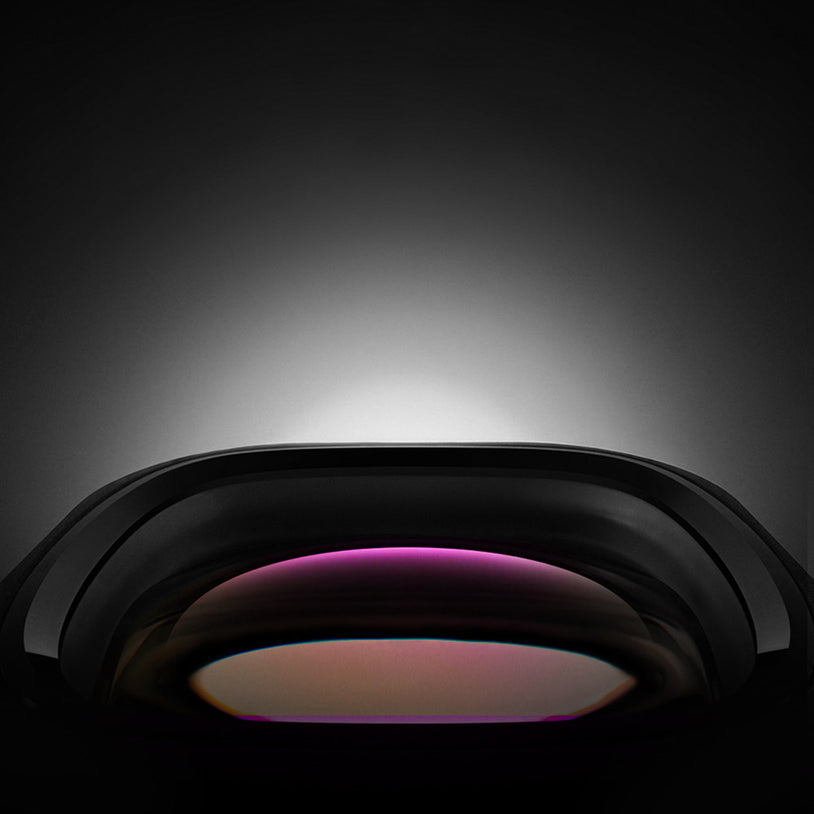

• The blue-coated optical lens improves light transmission efficiency while maintaining a clean and controlled beam pattern.
• With a 1700LM powerful output and a maximum throw of 206 meters, EVO 1700 UT provides extended forward visibility for high-speed riding.
• Side visibility is enhanced to improve rider presence in complex traffic environments.

Mounting & Integration

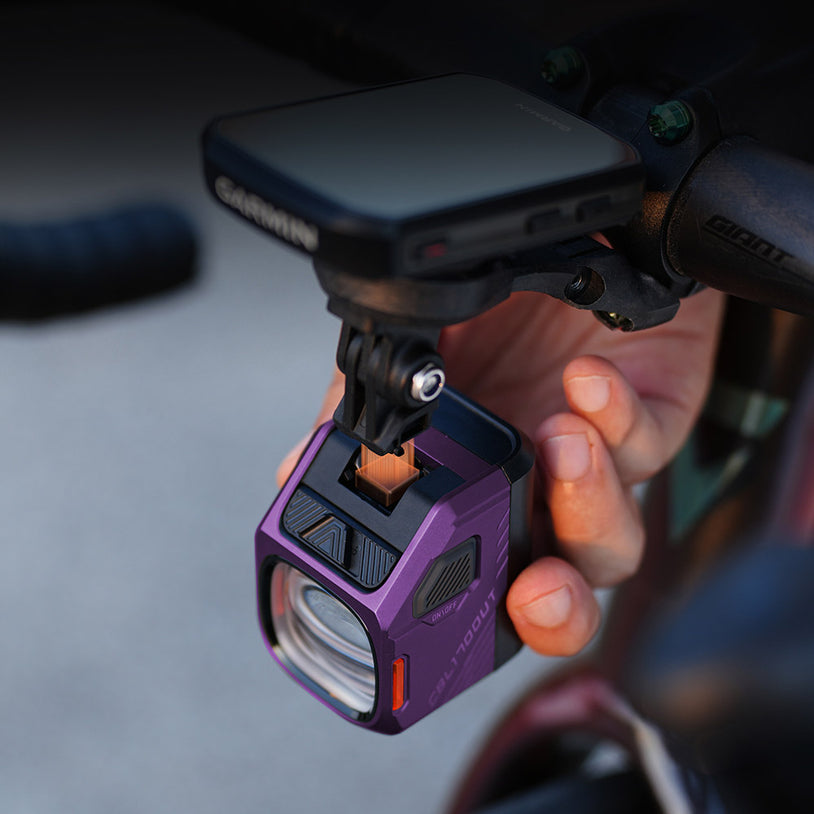

• The MagicLock magnetic mounting system ensures fast, intuitive installation with secure mechanical locking.

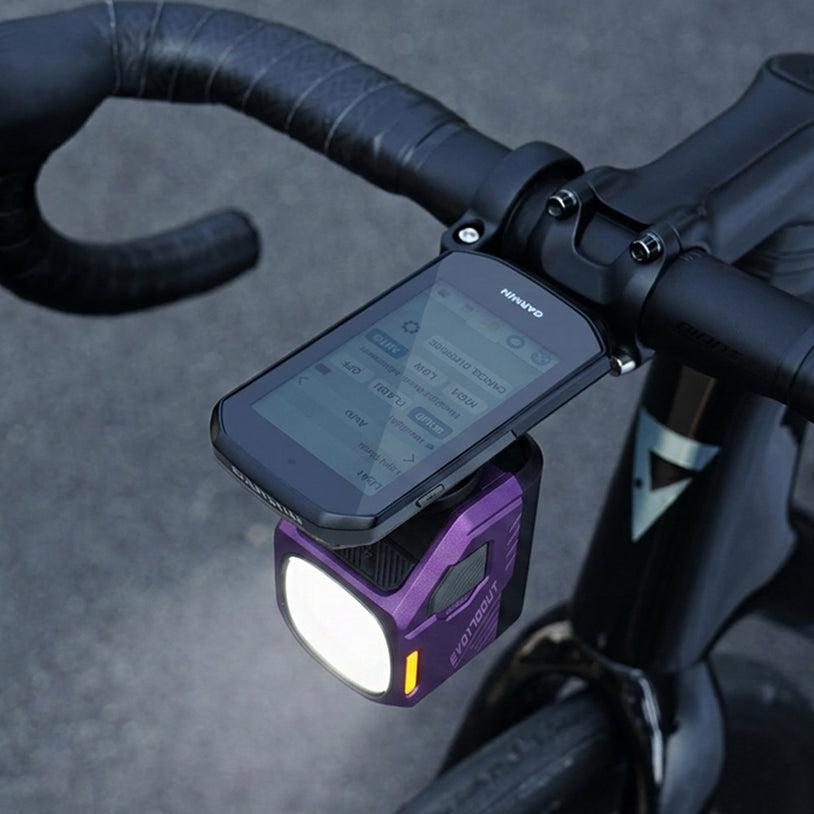

• It supports both standard and under-mounted configurations and integrates seamlessly with Garmin and Wahoo mounting systems.

Smart Control & Ecosystem

• EVO 1700 UT is built around a deeply integrated control ecosystem, transforming the bike light from a standalone device into a connected component of the riding system.
• ANT+ Connectivity Enables seamless pairing with compatible bike computers, allowing riders to monitor and control lighting directly from their cockpit interface while staying focused on the road.

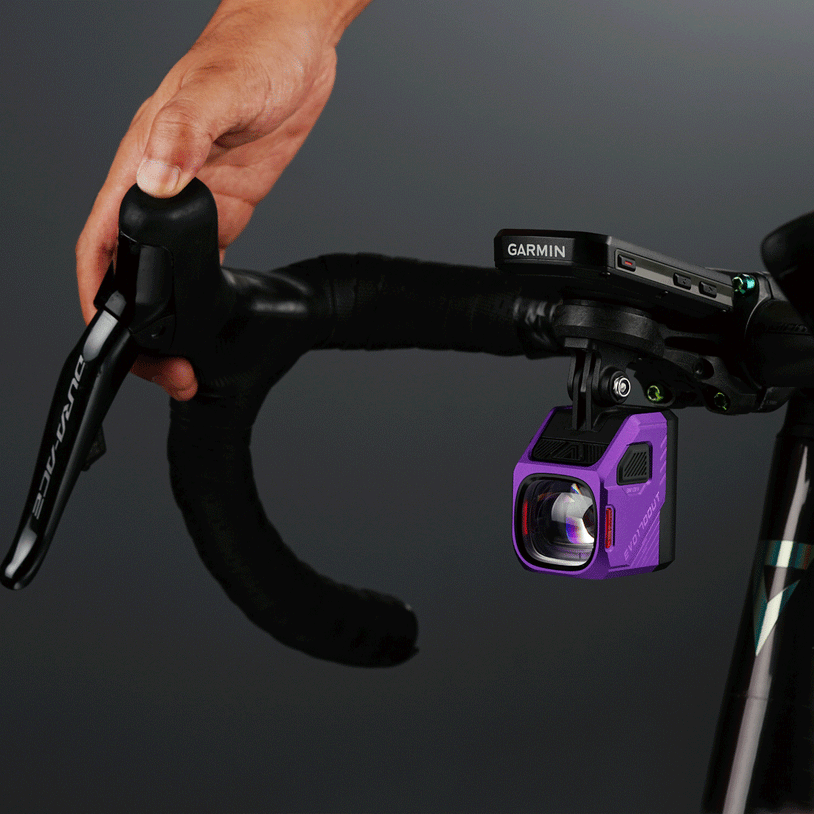

• Shimano Di2 Integration Allows direct control via shift buttons. Riders can switch modes or adjust brightness instantly without removing hands from the handlebar, improving safety and control at speed.

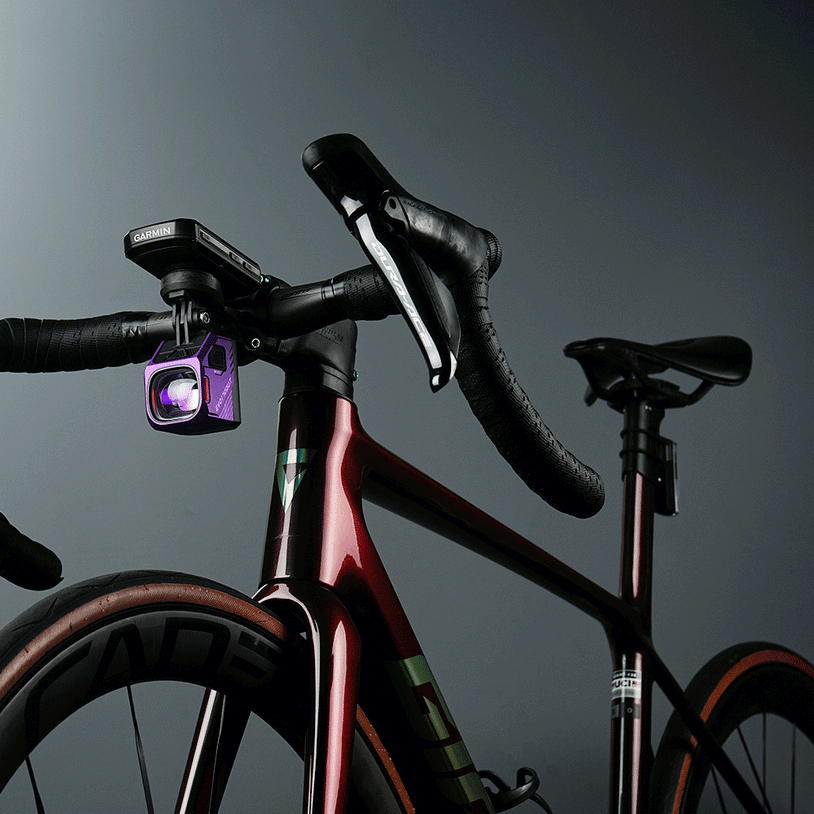

• FTR LightSync System Synchronizes front and rear lights into one system, enabling simultaneous on/off and coordinated mode changes for consistent visibility.

TOTAL CONTROL. FULLY INTEGRATED. EVO 1700 UT SMART INTEGRATED BIKE LIGHT

• Magicshine App Control Supports advanced customization of brightness levels and lighting modes, with OTA firmware updates to continuously enhance performance and functionality.
• Endurance Performance with System-Level Reliability Powered by dual 18500 cells (5200mAh), EVO 1700 UT delivers up to 17 hours of runtime.
• USB-C charging restores full power in approximately 3 hours (5V/2A).
• The aluminum alloy housing ensures a balanced combination of strength, weight, and heat dissipation, maintaining stable performance under sustained output.

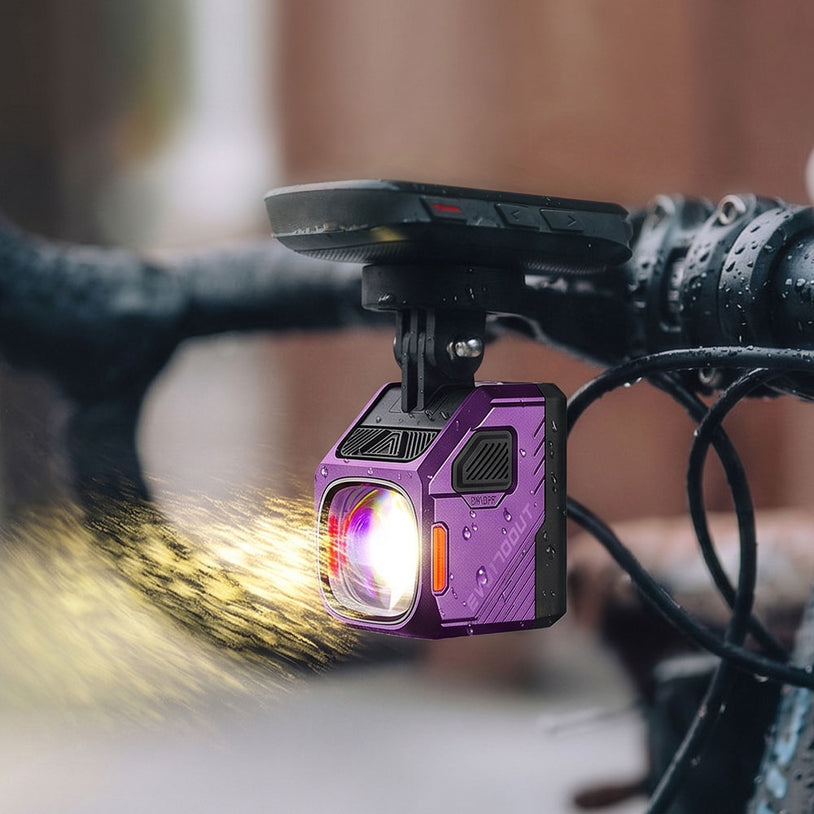

• IPX6 protection guarantees reliable operation in harsh weather conditions.
• A dedicated Smart Lockout mode prevents accidental activation, preserving battery life during transport or storage.

EVO 1700 UT is a fully integrated lighting system designed for the modern performance cyclist. It brings together power, intelligence, and seamless control into one unified platform.
